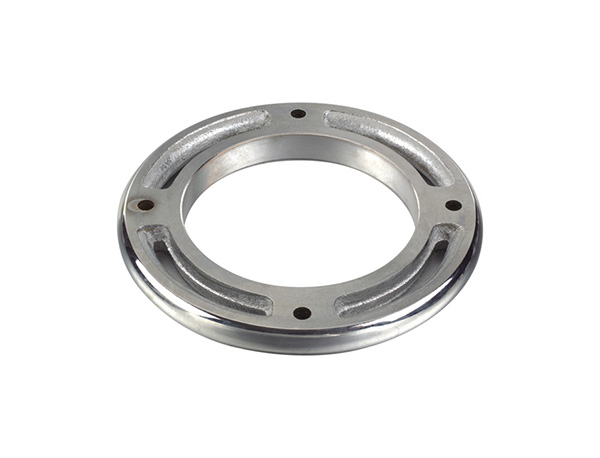

Internal Handwheels
  • Internal Handwheels
  • Product Name: Internal Handwheels
    Model Number: HY8313.34
    Brand Name: Huayang
    Executive Standard:
    Material: Cast iron
    Surfaced Process: Sand-blasted / chrome bright
    Place of Origin: Zhejiang, China (Mainland)
Product specification

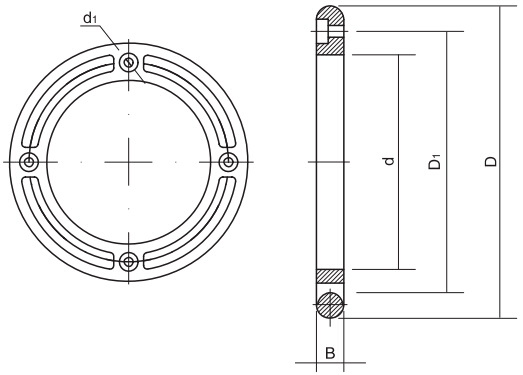

Drawing

HY8313.34圓輪緣內(nèi)手輪結(jié)構(gòu)圖


Parameter Size

Item No.Main dimensions（mm）Mounting hole
Cast iron
DD?dBd?
HY8313.34\170x267
2672221702512 sinking hole 25
HY8313.34\190x310
3102501903016 sinking hole 36
HY8313.34\220x320
3202682202812 sinking hole 25
